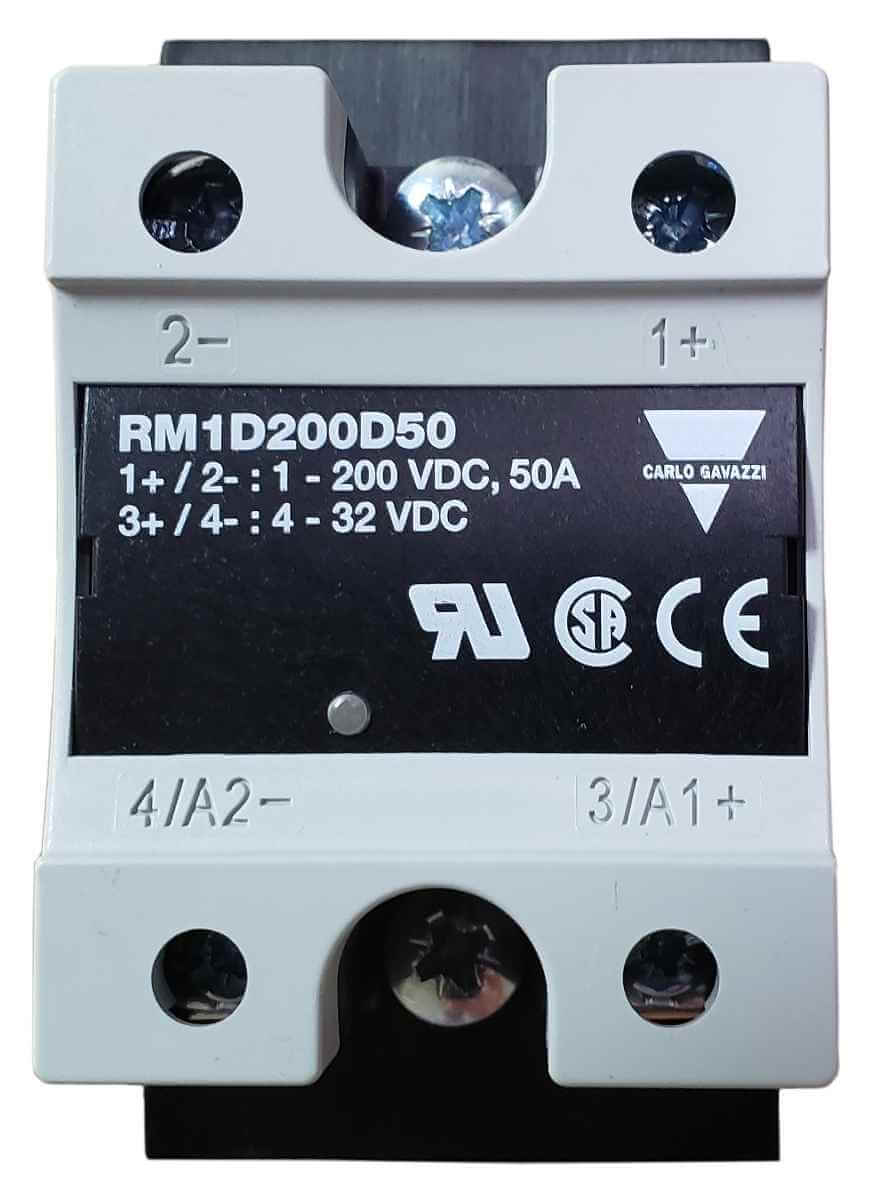

HPR Solid State Relay - 50 AMP @ 200 VDC - Single Pole - DC Control & DC Contacts
SKU: RM1D200D50 H
We are now offering Solid State Relays with DC contacts, for DC loads!
The RM1D200D50 H expands the range of DC solid state switching solutions up to 50 A for supply voltages up to 200 VDC. This new range is suitable for mounting on a heatsink or for panel mounting (Special Ordered). The switching of the RM1D200D50 H is controlled by a DC voltage in the range of 4.5 to 32 V. An LED indicates control voltage presence on the SSR.
The RM1D200D50 H is the ideal solution when switching response times, from ON to OFF and vice versa, are critical to the application. Being fully solid state, the RM1D200D50 H is the obvious choice for applications necessitating a high number of switching cycles since the SSR lifetime is not compromised by such switching. Specifications are at a surrounding temperature of 25°C unless otherwise specified.
Data Sheet
Manufacturer: Carlo Gavazzi
Weight: 1.5 lb
Delivery: Ships in 4-10 Business Days
Please use the "Request More Info" form
- 10-14 AWG (2.5-6.0 mm²)
- Housing material Noryl, black
- Mounting Panel mount
- Touch Protection IP20
- Isolation
- Input and output to case 3750 Vrms
- Input to output 3750 Vrms
- LED indication Continuously ON green LED when control input is applied
- Input Range 4.5 - 32 VDC
- Pick-Up Voltage 4.5 VDC
- Drop-out voltage 1.2 VDC
- Maximum reverse voltage 32 VDC
- Maximum switching frequency 1000 Hz
- Response time pickup @ Vout = 24 VDC, ton ≤100 μs
- Response time drop-out toff ≤150 μs
- Input current @ 40°C <16 mA VDC
- Max. operational current (DC 1 Rating) 50A DC
- Absolute max. output voltage 200 VDC
- Operational voltage range, Ue 1-200 VDC
- Output protection Integrated transil
- Leakage current @ rated voltage 0.1 mA VDC
- Minimum operational current 5 mA VDC
- Repetitive overload current UL508
- tAMB=40°C, tON=1s, tOFF=9s, 50 cycles 75A VDC
- Operating temperature -20°C to 80°C (-4°F to 176°F)
- Storage temperature -40°C to 100°C (-40°F to 212°F)
- Relative humidity 95% non-condensing @ 40°C
- Pollution degree 2
- Installation altitude 0-1000m. Above 1000m derate linearly by 1% of FLC per 100m up to a maximum of 2000m
- Vibration resistance 2g / axis
- Prospective short circuit current [kArms] 5
- Ferraz Shawmut (Mersen)
- Max fuse size [A] 70
- Part number HSJ70
- Voltage rating [VDC] 500
- Siba
- Max fuse size [A] 63
- Part number 5019006.63
- Voltage rating [VDC] 660
