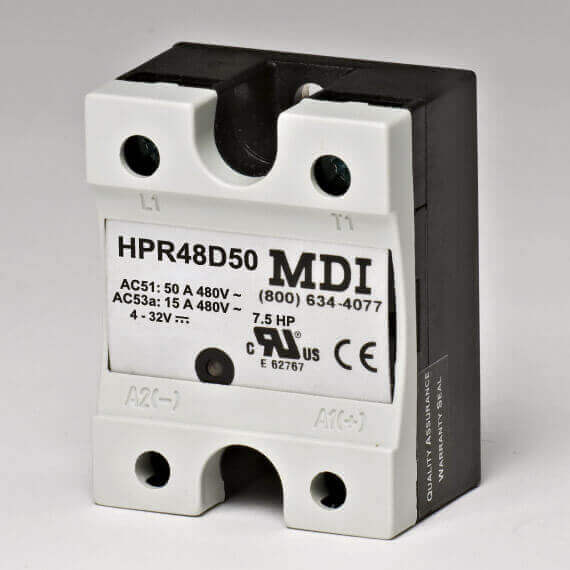

HPR Solid State Relay - 50 AMP - Single Pole - DC Control w/ Heatsink
SKU: HPR48D50 H
The industrial, Single-Phase relay with antiparallel thyristor output is the most widely used industrial SSR due to its multiple application possibilities. The relay can be used for resistive, inductive and capacitive loads. The zero-switching relay switches ON when the sinusoidal curve crosses zero and switches OFF when the current crosses zero. The instant-on relay with DC control input can be used for phase control. The built-in Varistor secures transient protection for the heavy industrial applications, and the LED indicates the status of the control input. The clip-on cover is securing touch protection to IP 20. Protected output terminals can handle cables up to 16mm².
Data Sheet
Manufacturer: MDI Relays & Switches
Weight: 1.5 lb
Delivery: 1 - 6 weeks
Please use the "Request More Info" form
- Carlo Gavazzi
- 4 to 32 VDC
- AC51 50 Arms @ 480 VAC
- AC53a 15 Arms @ 480 VAC
- 230 VAC 3 HP
- 400 VAC 5 HP
- 480 VAC 7.5 HP
- 1200 Vp
- > 4000 VACrms
- 10-14 AWG
- Zero switching AC SSR
- Direct copper bonding (DCB) technology
- LED indication
- Built-in Varistor 480V
- Clip-on IP 20 protection cover
- Self-lifting terminals
- Housing free of molding mass
- Co-ordination Type 1 (UL508)
- Suitable For Use On A Circuit Capable Of Delivering Not More Than 100,000 Arms Symmetrical Amperes, 600 Volts Maximum when Protected by Class J Fuses. Use Fuses Only. Tests with Class J fuses are representative of class CC fuses
- Max 30 AMPS @ 600 VAC Class J
- Max 20 AMPS @ 600 VAC
- Class HSJ20
- Semiconductor fuses
- Ferraz Shawmut (Mersen)
- 6.9zz CP gRC 22x58/50
- 22 x 58
