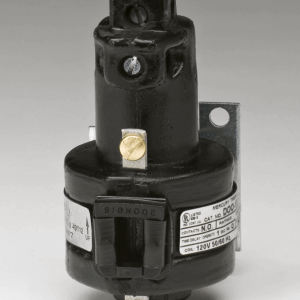

Mercury Timers Quote (Time Delayed Relays)
Time Delay Relays

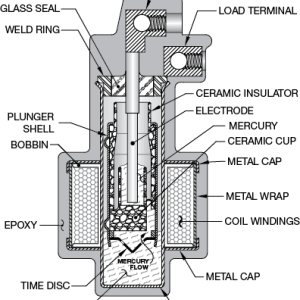

Are available with delays of up to 15 seconds on normally open units, and 4 seconds on normally closed units. The timing limitation depends on the contact action required. A time delay function is accomplished in this unit by sizing a hole in the time disc that will control the rate of the mercury flow. This controls the time it will take from the instant the coil is powered until the mercury pools make contact with each other, closing the circuit between the load terminals. Typical contact ratings 10 AMP @ 240 VAC. Pilot duty rating 720 VA. Common coil voltages are available. Standard load terminals are compression type. Coil terminals use #6 binding head screws.
Manufacturer: MDI Relays & Switches
Stock Quantity: Made to Order
Delivery: Ships in 5-8 Business Days
Please use the "Request a Quote" form
Made in USA
MDI Inc. Our Company!
See all MDI Electrical Products
Mercury Displacement Industries Incorporated, better known in the industry we serve as MDI, was incorporated in Michigan in 1975. The primary product line is switch gear components including mercury type contactors, tilt switches and liquid level float controls.
Contactors are rated from 30 to 100 Amperes and are commonly used in various heating, lighting, and many other industrial applications including high voltage ultraviolet type loads. The contacts are encased in hermetically sealed stainless steel tubes to provide reliable switching for millions of operations. All basic units are UL, CSA, and CE approved.
The liquid level control floats are manufactured with mechanical or mercury switches. The float material is High Impact Polystyrene for normal alarm, sump pump or water applications, For sewage, 1 or 2 H.P. or high temperature, 86°C (186°F) requirements Acrylonitrile Butadiene Styrene, (ABS) float material is provided.
MDI has 40 to 50 employees and markets products through distributors, representatives or direct to OEM accounts throughout the world.
MDI Quality Policy
It is the policy of MDI to manufacture and market products of excellent quality, durability and reliability. This policy emphasizes the importance of product reputation and customer satisfaction in the success of our business. The MDI Team is committed without exception to the continuous improvement in quality and cost, and to manufacturing productivity and efficiency.
