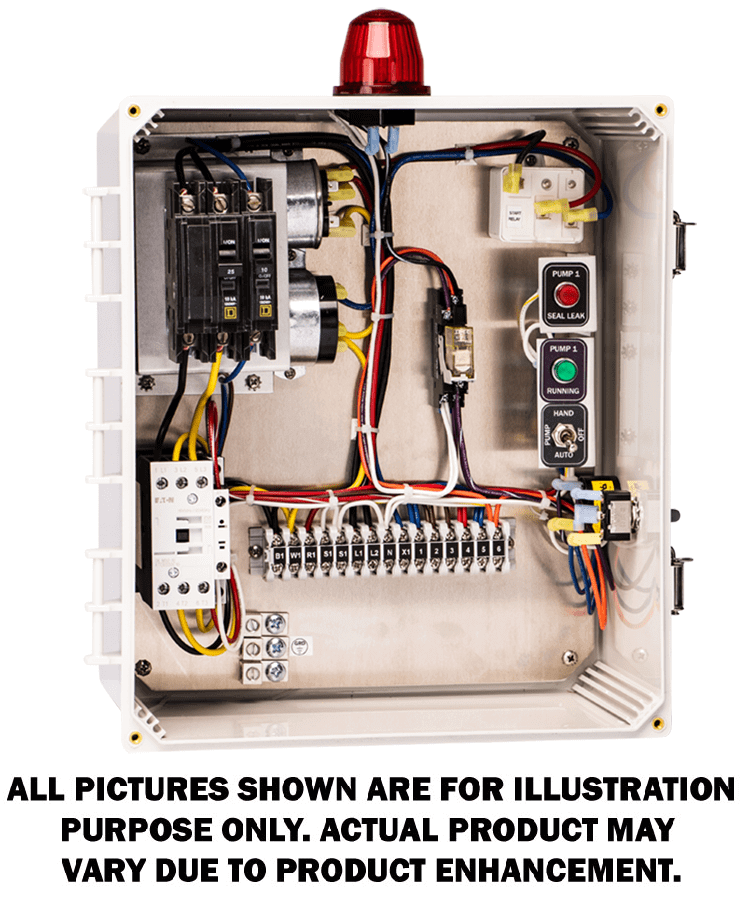

Simplex Grinder Control Panel - 208/240 Single-Phase (Separate Pump & Control Circuit)
SKU: 50A700-C20-NF
Price: $814.49
SPI Model GDR/SIM-C20
- 208/240 Single-Phase Simplex Grinder Control Panel (Separate Pump & Control Circuit)
- 4x Rated Durable, Weather-Resistant Enclosure with Mounting Feet and Stainless Steel Latch
- Circuit Breaker for Pump and Controls
- IEC-Rated Motor Contactor
- Easy to Access Finger Safe Terminal Block
- Start/Capacitor Kit for Specified Pump
- Supplied for Certain Model, Please Verify Pump Model, FLA and Capacitor if know
- Secondary Fuse Protection
- Pump Hand-Off-Auto Switch with Pump Running Light
- Full Alarm Circuit (Visual and Audible Alarms)
- Alarm Test, Normal and Silence Switch
- Color Coded Internal Wiring
- Connection Diagram and Schematic
- 3 Float System (Off, On and High Water)
- Built and Labeled to UL 508A Standard
- FLA Range 0-20
This model Cannot Be Returned
Spec Sheet
Connection Diagram
Manufacturer: SPI
Weight: 20 lb
***Featured Item***
Delivery: Ships in 4-10 Business Days
- Fiberglass Enclosure
- IEC Motor Contactor
- Flasher
- Dead Front Inner Door
- Auxiliary Alarm Contacts
- Elapsed Time Meter
- Event or Cycle Counter
- Mercury or Mechanical Float Switches for the Pumps and High Water Alarm Circuits
